ER125  C4D 検出器

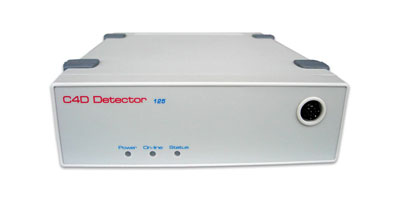

ER125 C4D 検出器
ER125 C4D 検出器
  • 非接触電導度検出器
  • キャピラリー電気泳動やイオンクロマトグラフィーの検出器として利用
  • 汎用のデータ収録装置で記録が可能




ER 125 は製造を終了し、現在は後継機の [ER815 ER815] 及び [ER825 ER825] C4D 検出器を発売しています。

C4D 検出器は現在使用中の記録システムに C4D データを記録したいユーザ様向けに設計された製品です。特に、AgilentのChemStation や Beckman Coulterの32 Karat をお使いの方々に重宝されています。 デジタル (RS232) 及びアナログシグナル(~±3 V) を出力しますので、各種データ収録システムが利用できます。

C4D は静電結合による非接触電導度計 (capacitively-coupled contactless conductivity detector )で、キャピラリー電気泳動やイオンクロマトグラフィーの検出器として使われています。

最適な感度を得る為の励起周波数や増幅度は、専用のC4D Detector ソフトウェアを使ってユーザが設定します。

C4D Amp には使用目的に対応する C4D ヘッドステージが必要です。

研究分野

引用文献

  • Electric field-driven extraction of lipophilic anions across a carrier-mediated polymer inclusion membrane.   Hong Heng See, Peter C. Hauser.   Analytical Chemistry, 83, 7507-13, 2011.   DOI: 10.1021/ac201772g
  • Optimization of capillary electrophoresis method with contactless conductivity detection for the analysis of tobramycin and its related substances.   Mohamed N. El-Attug, Jos Hoogmartens, Erwin Adams, Ann Van Schepdael.   Journal of Pharmaceutical and Biomedical Analysis, 58, 49–57, 2012.   DOI: 10.1016/j.jpba.2011.09.032
  • Capillary electrophoresis with capacitively coupled contactless conductivity detection for the determination of cis/trans isomers of octadec-9-enoic acid and other long chain fatty acids.   Yong Foo Wong, Bahruddin Saad, Ahmad Makahleh.   Journal of Chromatography A, 1290, 82-90, 2013.   DOI: 10.1016/j.chroma.2013.03.014
  • Referenced Capacitively Coupled Conductivity Detector for Capillary Electrophoresis.   Marko Stojkovic, Boris Schlensky, Peter C. Hauser.   Electroanalysis, 2013. DOI: 10.1002/elan.201300413
  • The analysis of small ions with physiological implications using capillary electrophoresis with contactless conductivity detection.   Ioan-Ovidiu Neaga, Bogdan Cezar Iacob, Ede Bodoki.   Journal of Liquid Chromatography & Related Technologies, 2013.   DOI: 10.1080/10826076.2013.825862
  • Study on urinary metabolic profile of phenylketonuria by micellar electrokinetic capillary chromatography with dual electrochemical detection.   Dongli Zhang, Wenli Li, Junbo Zhang, Wanrong Tang, Chenxu Qian, Minghao Feng, Qingcui Chu, Jiannong Ye.   Analytica Chimica Acta, 2011.   DOI: 10.1016/j.aca.2011.03.044
  • Flow injection determination of free fatty acids in vegetable oils using capacitively coupled contactless conductivity detection.   Ahmad Makahleh, Bahruddin Saad.   Analytica Chimica Acta, 694, 90–94, 2011.   DOI: 10.1016/j.aca.2011.03.033
  • Determination of creatine and phosphocreatine in muscle biopsy samples by capillary electrophoresis with contactless conductivity detection.   Hong Heng See, Julia Schmidt-Marzinkowski, Worapan Pormsila, Réjane Morand, Stephan Krähenbühl, Peter C. Hauser.   Analytica Chimica Acta, 727, 78-82, 2012.   DOI: 10.1016/j.aca.2012.03.055
  • Determination of underivatized long chain fatty acids using RP-HPLC with capacitively coupled contactless conductivity detection.   Ahmad Makahleh, Bahruddin Saad, Gan Hui Siang, Muhammad Idiris Saleh, Hasnah Osman, Baharuddin Salleh.   Talanta, 81, 20-24, 2010.   DOI: 10.1016/j.talanta.2009.11.030
  • Capacitively coupled contactless conductivity detection as an alternative detection mode in CE for the analysis of kanamycin sulphate and its related substances.   Mohamed N. El-Attug, Erwin Adams, Jos Hoogmartens, Ann Van Schepdael.   Journal of Separation Science,34, 2448–2454, 2011.   DOI: 10.1002/jssc.201100267
  • Simultaneous determination of atenolol and amiloride in pharmaceutical preparations by capillary zone electrophoresis with capacitively coupled contactless conductivity detection.   Khaldun M. Al Azzam, Bahruddin Saad, Hassan Y. Aboul-Enein.   Biomedical Chromatography, 24, 948-53, 2010.   DOI: 10.1002/bmc.1390





  • AC 励起周波数: 50 - 1200 kHz @ 1 - 100 V (peak to peak)
  • 増幅: x1, x10, x100, x1000
  • オフセットゼロ: 0 - 2 V
