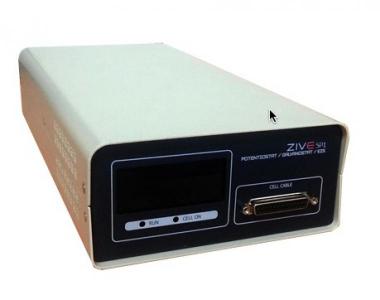

SP1 Zive Potentiostat
SP1 Zive Potentiostat
- Solar Cells
- Supercapacitors
- Fuel Cells
- Batteries
- Sensors
- General Electrochemistry
This is an economic high quality potentiostat/galvanostat/impedance analyzer especially designed for electrochemical experiments with batteries, fuel cells, corrosion, sensor and solar cells. It is supplied with various software packages for different types of experiment, and connects via USB to a Windows XP, Vista, 7 or 8 computer.
The ZIVE SP1 electrochemical workstation is ideal for both fundamental research, and product development, and quality assurance programs for:
- new sensors
- corrosion/coatings
- electrode materials
- membranes
- conducting polymers
- battery materials
- fuel cells
- supercapacitors
- photovoltaic materials and solar cells
The ZIVE SP1 can be used as a:
- potentiostat, for voltammetric and chronoamperometric experiments
- galvanostat
- ZRA (zero resistance ammeter)
- FRA (frequency response analyzer) for EIS (electrochemical impedance spectometry)
This powerful model is a perfect choice for the DC and impedance characterization of materials.
See the brochure for more details.
- Potential range: ±10V
- Current ranges: 100 nA, 1, 10, 100 µA, 1, 10, 100 mA, 1 A
- Current resolution: 16 bits:
- Frequency Responce Analyser for EIS: 10 µHz to 1 MHz
- 12 EIS techniques (including Multi-Sine)
- Capable of Bipolar Pulse technique
- Voltage pulse or current pulse charge/discharge test (GSM,CDMA etc.)
- Ripple simulation available in Battery test package.
- Pulse plating available
- Internal 350,000 data point storage
- Dimendions: 160 x 324 x 76 mm / 2 kg
-
Includes software packages for:
- corrosion testing
- EIS
- electrochemical analysis
- battery testing - Warranty: 12 months
